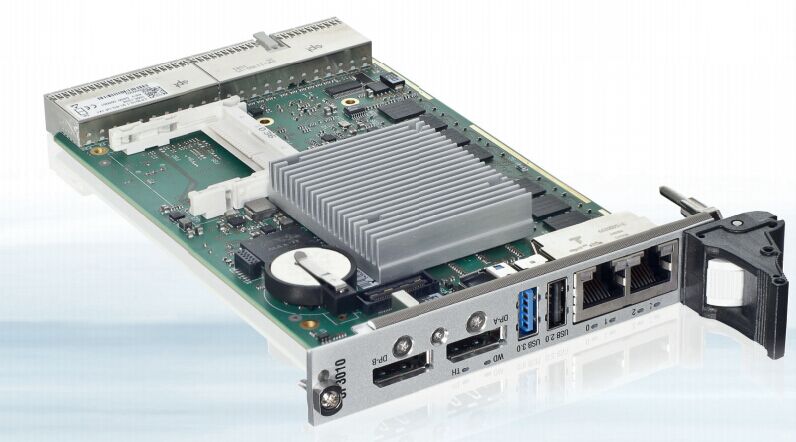

RCS 3U CPCI Intel® Atom™ 主控板
软件支持
Linux
Vxworks
QNX
Windows

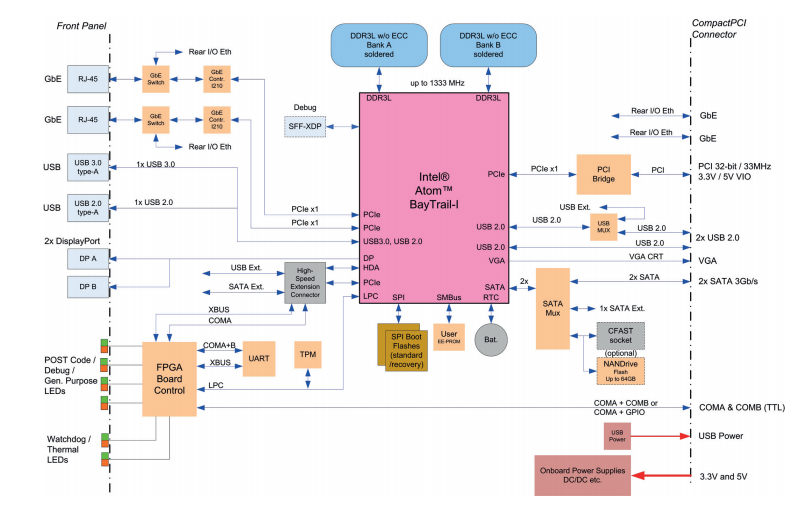

系统功能框图
最新的Intel® Atom™处理器技术
强大的系统级芯片
先进的图形处理能力
经久耐用且低功耗的板载设计
优化的散热设计
全面的I/0接口功能：显示接口，USB2.0/3.0，以太网口，CAN口，SATA接口……
电力通讯
轨道交通
国防军工
航空航天
工业控制
| SOC (SYSTEM-ON-A-CHIP) |
Intel® Atom™ SOC (22nm technology):
E3845: Quad-Core 1.91 GHz, 2MB cache
E3827: Dual-Core 1.75 GHz, 1MB cache
All boards are passive cooled with a heatsink in 4HP height
I/O Specification:
- USB host interface with three USB 2.0 and one USB 3.0 ports
- SATA host controller with two SATA 3Gb/s ports
- Four x1 PCI Express® 2.0 ports operating at 5.0 GT/s
Graphics Specification:
- Intel® HD Graphics
- Support for up to 2x independent displays
|
|
|---|---|---|
| MEMORY |
SYSTEM MEMORY
BOOT FLASH (UEFI)
EEPROM
CFAST
SATA FLASH
HDD/SSD
|
Up to 8GB soldered DDR3L running at 1067/1333 MHz, dual channel w/o ECC
Two redundant 8 MB SPI boot flashes with fail-over functionality
Serial EEPROM (24LC64) 64 Kbit for storing uEFI BIOS settings and serial number
Onboard CFast installation via CFAST module
Up to 64GB soldered SATA NAND Flash, optional available
Onboard 2.5” SATA SSD/HDD installation via 8HP extension
|
| ONBOARD CONTROLLER |
GIGABIT ETHERNET
UART
WATCHDOG
RTC
TRUSTED PLATFORM MODULE
(TPM)
CAN
|
Up to three 1000BASE-T interfaces with WOL (Wake-on-LAN) support,two front/rear switchable, third available via 8HP extension, Intel® I210-IT Ethernet controller
XR16L2750IM-F UART, 16C550-compatible
FPGA-based, timeout ranging from 125ms to 4096s programmable in
16 steps, IRQ, reset, dual-stage configuration
Integrated in SOC
Atmel AT97SC3204 TPM 1.2 controller
SJA1000 CAN controller for one CAN port, available on the 8HP extension
|
| FRONT INTERFACES 4HP |
DISPLAYPORT
USB
ETHERNET
LEDS
|
2x 20-pin DisplayPort connectors, DVI/HDMI/VGA capable through cable
adapter
1x USB 3.0 port, 9-pin type-A connector
1x USB 2.0 port, 4-pin type-A connector
2x RJ-45 with integrated LEDs (ACT, SPEED)
6x LED’s: 4x POST Code or General Purpose, WD, TH
|
|
FRONT INTERFACES 8HP
(ADDITIONAL TO 4HP)
|
ETHERNET
CAN
SERIAL PORT
USB
LINE-IN
LINE-OUT
CONTROL
|
1x RJ-45 with integrated LEDs (ACT, SPEED)
1x 9-pin D-Sub connector
1x 16C550-compatible serial port, RS-232 signalling, RJ-45
1x USB 2.0 port, 4-pin type-A connector
1x 3.5 mm stereo jack, blue jack
1x 3.5 mm stereo jack, green jack
Reset button and HDD activity LED
|
| ONBOARD INTERFACES |
HIGH-SPEED EXTENSION
CONNECTOR
CFAST
|
One 60-pin high-speed connector holding:
- COMA (TTL)
- One SATA 3Gb/s
- One USB 2.0
- PCIe x1
- HDA
- XBUS
- Reset
One CFast card socket on CFAST module
|
| REAR I/O VIA J2 |
The CP3010-SA supports the following interfaces via Rear I/O:
- One VGA analog port
- Two USB 2.0 ports
- Two Gigabit Ethernet ports without LED signals
- Two SATA 3 Gb/s ports
- Two COM ports RS-232 (LVTTL signal level)
- Five GPIs and Three GPOs (LVTTL signal level)
- System management signals: Power Button, Sleep S3, 5V Standby
- Option to write protect non-volatile RAMs via a special pin
|
|
| CompactPCI® BUS INTERFACE |
PICMG 2.0 Rev. 3.0 compatible, 32-bit/33MHz (66MHz on request), version
with rear I/O via J2
Universal 5V and 3.3V PCI signalling voltage supported, 7 Req/Gnt & clock
lines
Operating in system slot as system master and in peripheral slot in PCI
passive mode
|
|
| HOT SWAP |
Support for all signals to allow peripheral boards to be hot swapped.
The individual clocks for each slot and access the backplane ENUM# signal
comply with the PICMG 2.1 Hot Swap Specifi cation
|
|
| SUPERVISORY FUNCTIONS |
Watchdog, software confi gurable, 125ms to 4096s in 16 steps, generates
IRQ or hardware reset or dual-stage confi guration
|
